2.4G 30W GAN Power RF detect module for anti FPV system autel mavic 3 counter fpv C-UAS djis countermeasure amplifier
2.4G 2.4Ghz 20W GAN Power RF detect module for anti drone system autel mavic 3 counter fpv C-UAS djis countermeasure amplifier
Product details
Product Overview
2.4Ghz 20W GAN Power RF detect module for anti drone system autel mavic 3 counter fpv C-UAS djis countermeasure amplifier
1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C. 2.This document stipulates the radio frequency and monitoring technical indicators of the 2.4Ghz 20W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc. 3.This document applies to all aspects of product design, verification, production and quality inspection of the 2.4Ghz 20W power amplifier module.
Product Description
Specification
| Frequency | 2.4G |
| Power | 20W |
| Supply Voltage | DC 27-28V |
| Power Flatness | 1-1.5dB |
| Input/Output VSWR | 1.5dB |
| Supply Current | 1-1.1A |

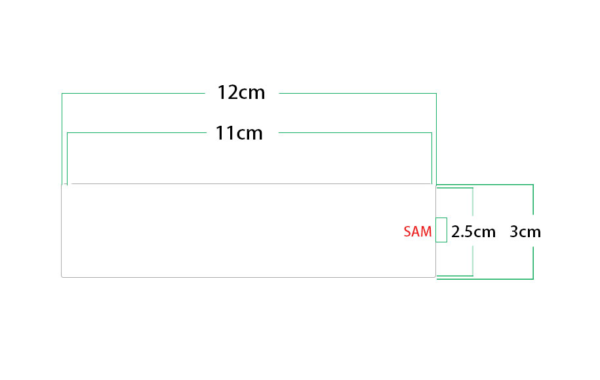

| Size | 120*30*15mm |
| Weight | 105 g |
| Operating Temperature | -20℃-80℃ |
| RF Connector | SMA |
| Connect line | RED:DC28-30V
BLACK:GND WHITE:ENABLE |
